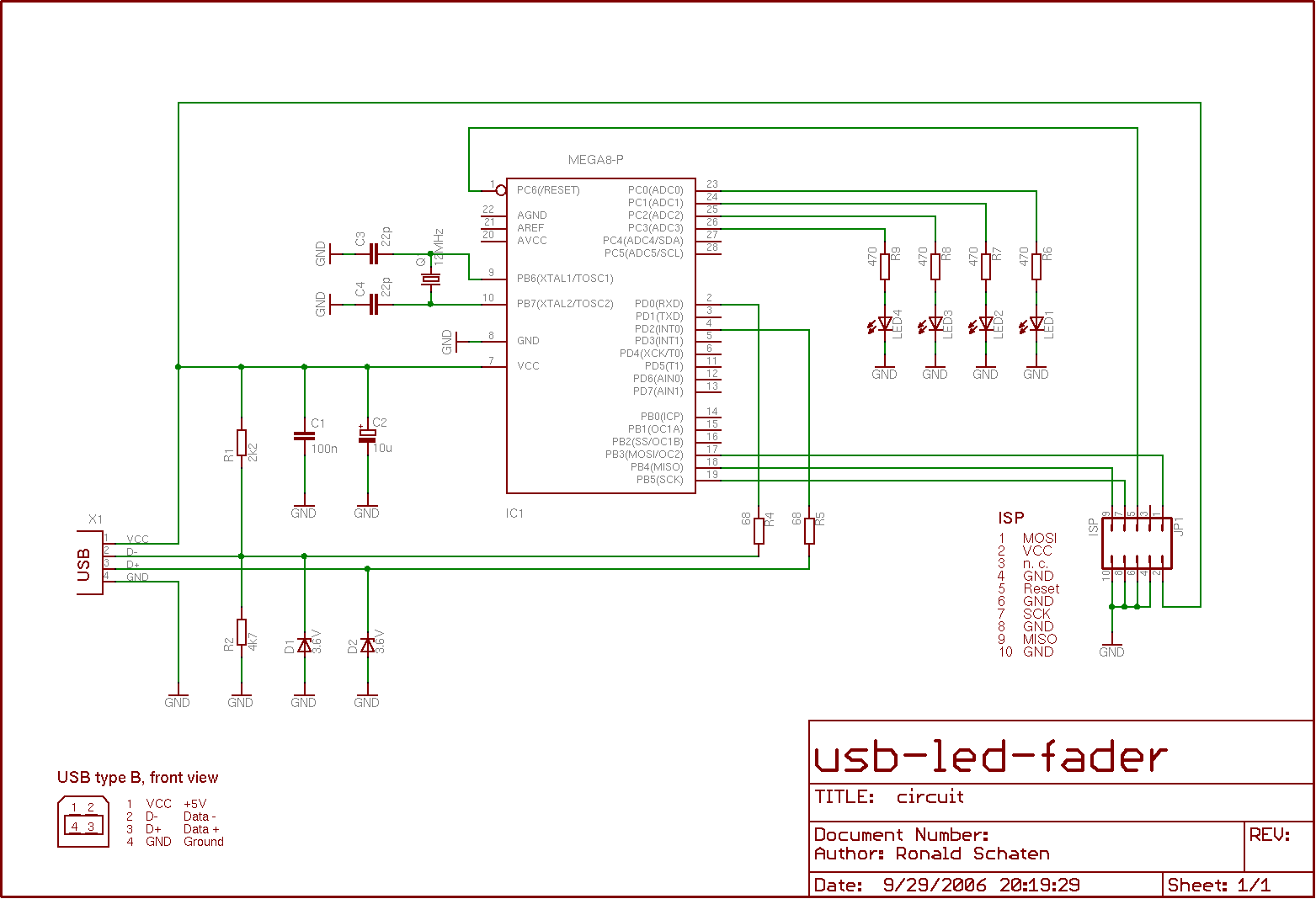

USB-LED-Fader/circuit/circuit.sch.png
Ronald Schaten e4b8aa91e7 Changed the circuit: zener-diodes instead of the LM317, so the uC runs at 5V
instead of 3.6V. Now, even the blue LED lights at full brightness.
And changed the interface to the controller to use only two wires on port D, so
the firmware needed an update, too.
2006-09-29 21:51:07 +00:00

27 KiB
1563x1068px
