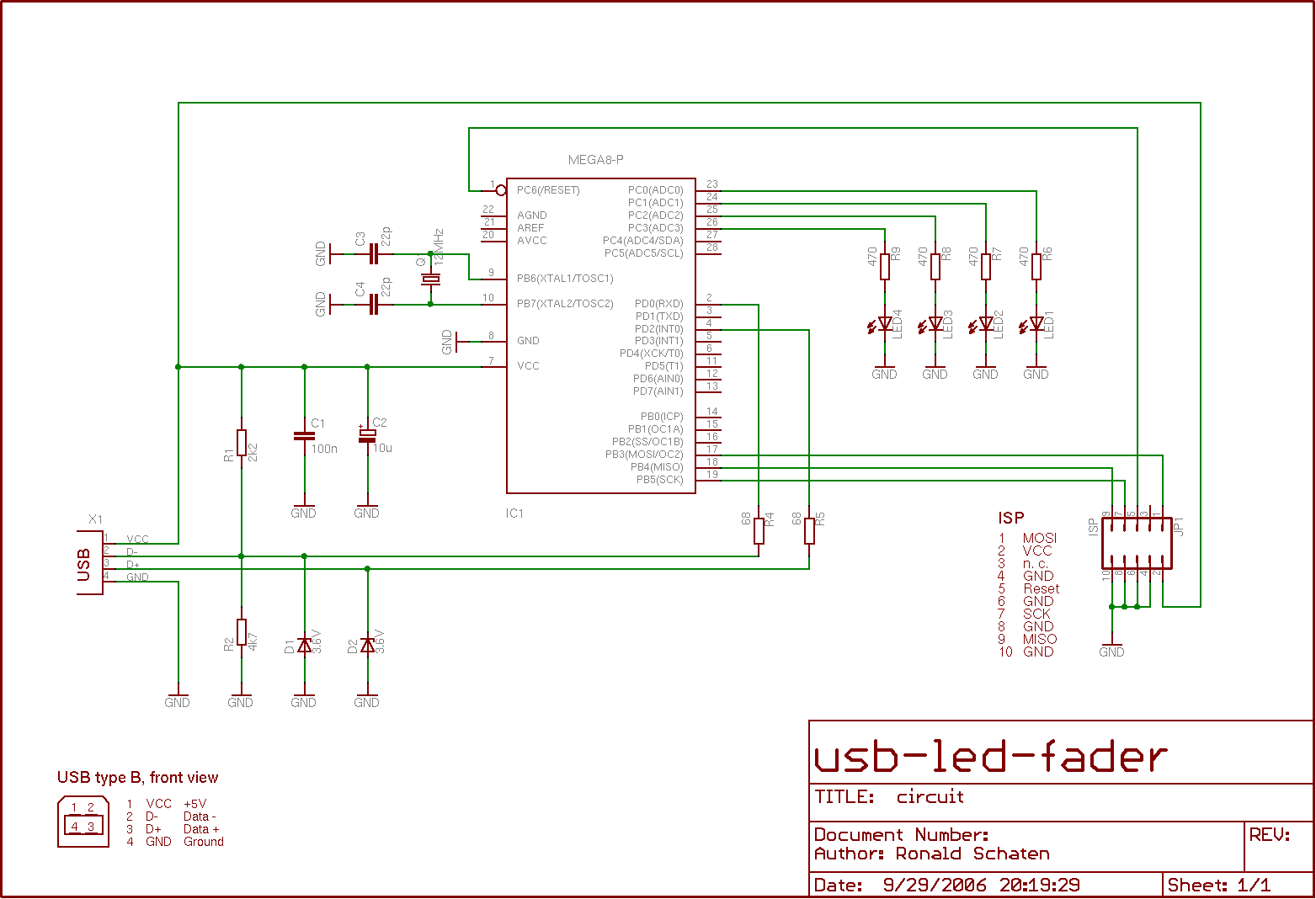

Ronald Schaten e4b8aa91e7 Changed the circuit: zener-diodes instead of the LM317, so the uC runs at 5V ...

instead of 3.6V. Now, even the blue LED lights at full brightness.
And changed the interface to the controller to use only two wires on port D, so
the firmware needed an update, too.
